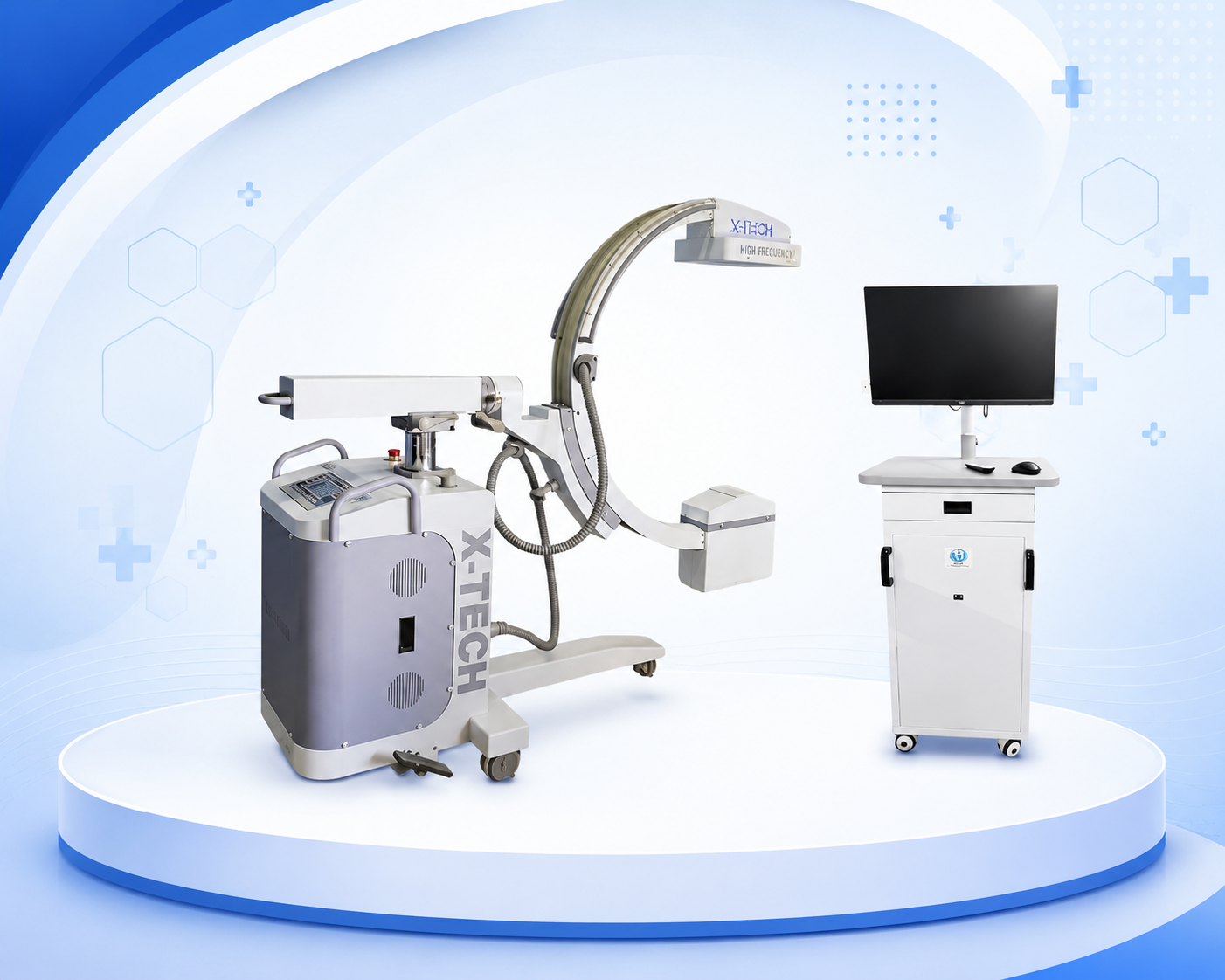

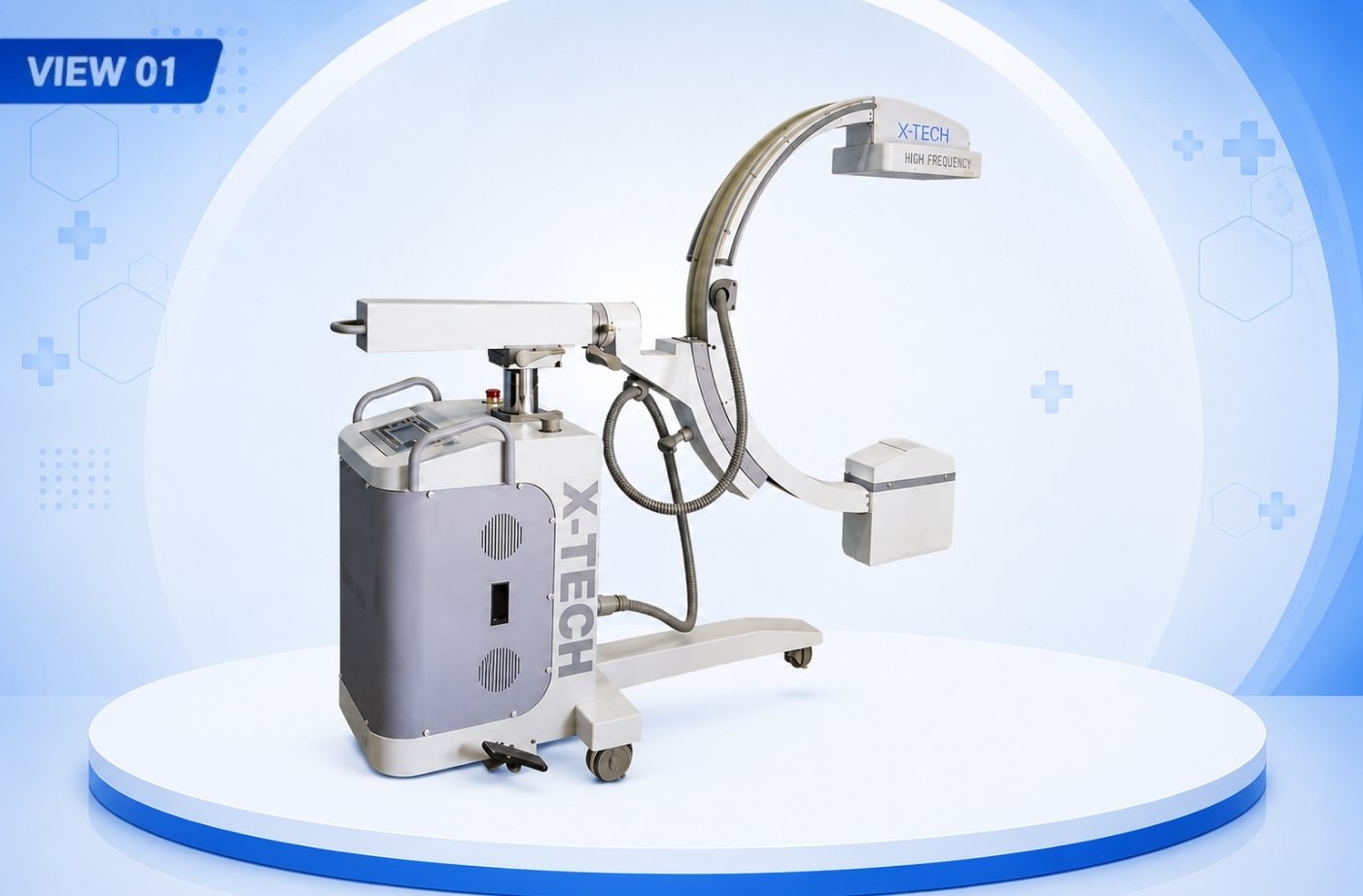

The C-Arm 3.5kW with FPD DOXA SERIES DR is a compact and high-performance imaging solution designed for precision-driven surgical and diagnostic procedures. Powered by a reliable 3.5kW generator, it delivers stable X-ray output with low radiation exposure and excellent image clarity. Integrated with an advanced Flat Panel Detector (FPD) from the DOXA SERIES DR, it ensures high-resolution digital imaging, fast image acquisition, and seamless workflow during real-time procedures. Its ergonomic C-arm design allows smooth movement and precise positioning, making it ideal for use in orthopedics, pain management, and general surgery. With user-friendly controls and dependable performance, this system is a cost-effective choice for modern operating rooms and diagnostic setups.
C-Arm 3.5kW with FPD DOXA SERIES DR
Specification:
- 3.5kW High-Frequency Generator
- DOXA SERIES DR Flat Panel Detector (FPD)
- Ergonomic C-Arm Mobility
Product Details:
Model
DOXA SERIES DR (Micro Processor Controlled C-Arm Machine with Excellent Image Quality at Low Radiation)
Panel
Amorphous silicon active TFT/diode array
Scintillator
Direct-Deposit CsI: TI
Effective Active Area
236.5x236.5mm
PixelPitch
154 μm
Limiting Resolution
3.2Ip/mm (1x1), 1.6Ip/mm(2x2)
PixelArray
1536x1536
Display
Digital (kVp / mA / mAS / S)
Size
280 x 280 x 45.8mm
Weight
~3.2Kg
Housing
Anodized aluminum alloy
Ingress Protection
IP30
Data I/F
Gigabit Ethernet
X-ray I/F
Integrated X-ray trigger control (TTL 5V or 12V)
DQE (1x1 @ RQA 5, 0.9 μGy)
~80% (@0.0 lp/mm), ~65% (@1.0 lp/mm), ~43% (@2.0 lp/mm), ~22% (@3.0 lp/mm)
MTF(1x1)
~60% (@1.0 lp/mm),~28% (@2.0 lp/mm),~12% (@3.0 lp/mm)
Lag
1st frame<2.5%, 2nd frame<0.5%
Quantum Limited Dose
3.0 nGy/frame (1x1), 1.5 nGy/frame (2x2)
Dynamic Range
>70 dB high gain (1x1),> 93 dB low gain(1x1)
>60 dB high gain (2x2),> 90 dB low gain(2x2)
Energy
15-ISOKV
Temperature
Operating:10~40 °C, Storage:-20~55 °C
Power Supply
240V AC, 50/60Hz
Maximum Power
~20W
